The newly redesigned Silver Bullet HP valve components — including the valve body, bonnet, and diaphragm are not compatible with the older 1-inch Silver Bullet (“old style”) valve.
Repair Kit for Legacy (“Old Style”) Silver Bullet Valves
If you’re maintaining an existing valve, the following repair parts designed specifically for older models are available.
SB-10/10F (12000 Series) Old Style Repair Kit | |
| Part Number: 110-003-SAK | |
| Quantity | Description |
| 1 | Solenoid |
| 1 | Exhaust O-Ring |
| 1 | Diaphragm |
| 1 | Diaphragm Spring |
| 2 | Cover Bolts |
SB-10/10F (12000 Series) Old Style Cover Assembly | |
| Part Number: 45-02FSA Cover Assembly | |
| Quantity | Description |
| 1 | Cover Assembly |
Note: The cover is black rather than gray, but is fully compatible with the original valve body.
Considering an Upgrade?

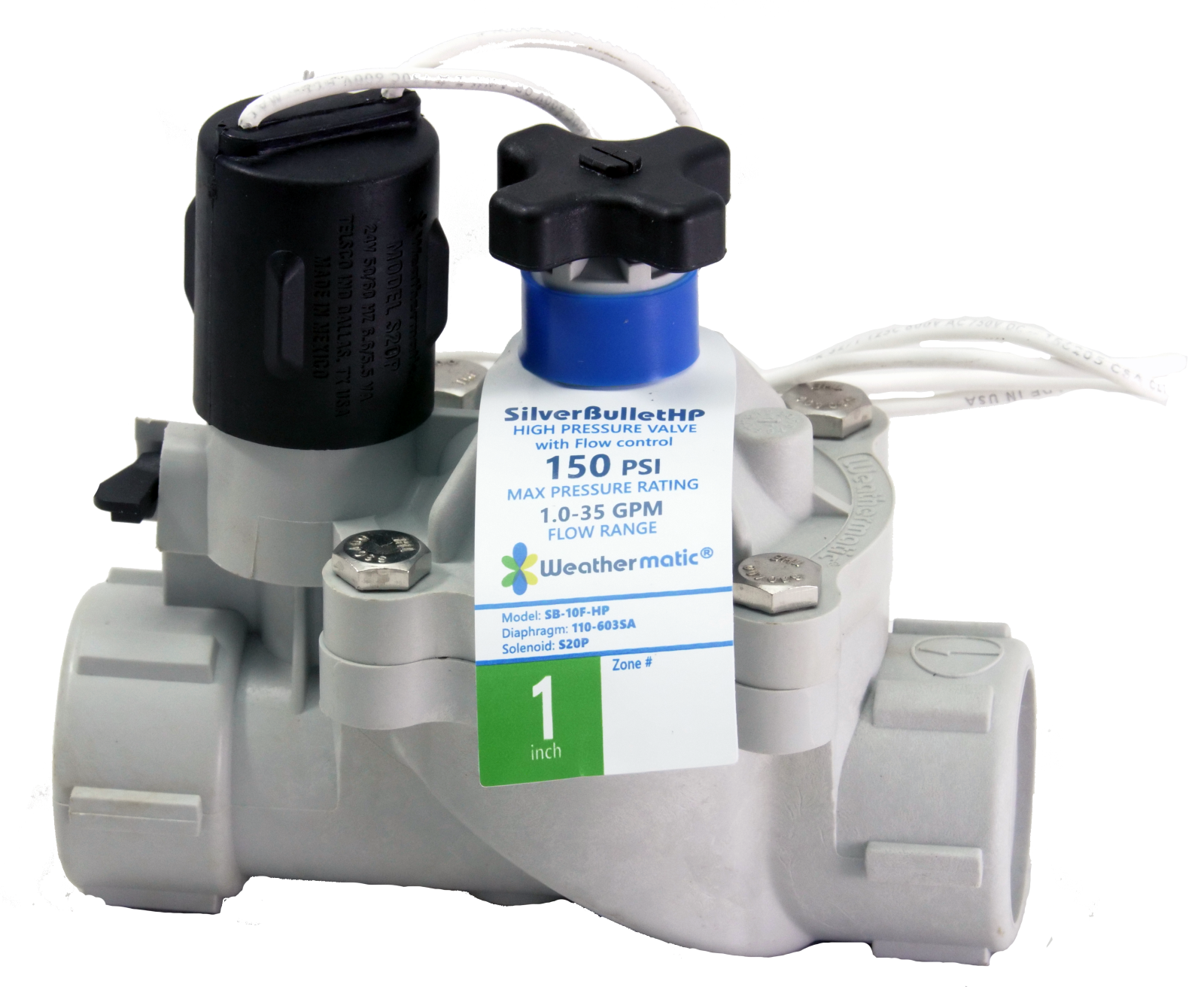

Our redesigned Silver Bullet HP valve offers improved performance and durability with:
- Updated body design
- Pressure-activated diaphragm
- Easy valve identification system
- 5-year trade warranty
- New body design
- Pressure activated diaphragm
- Valve identification system
- New 5-year trade warranty
