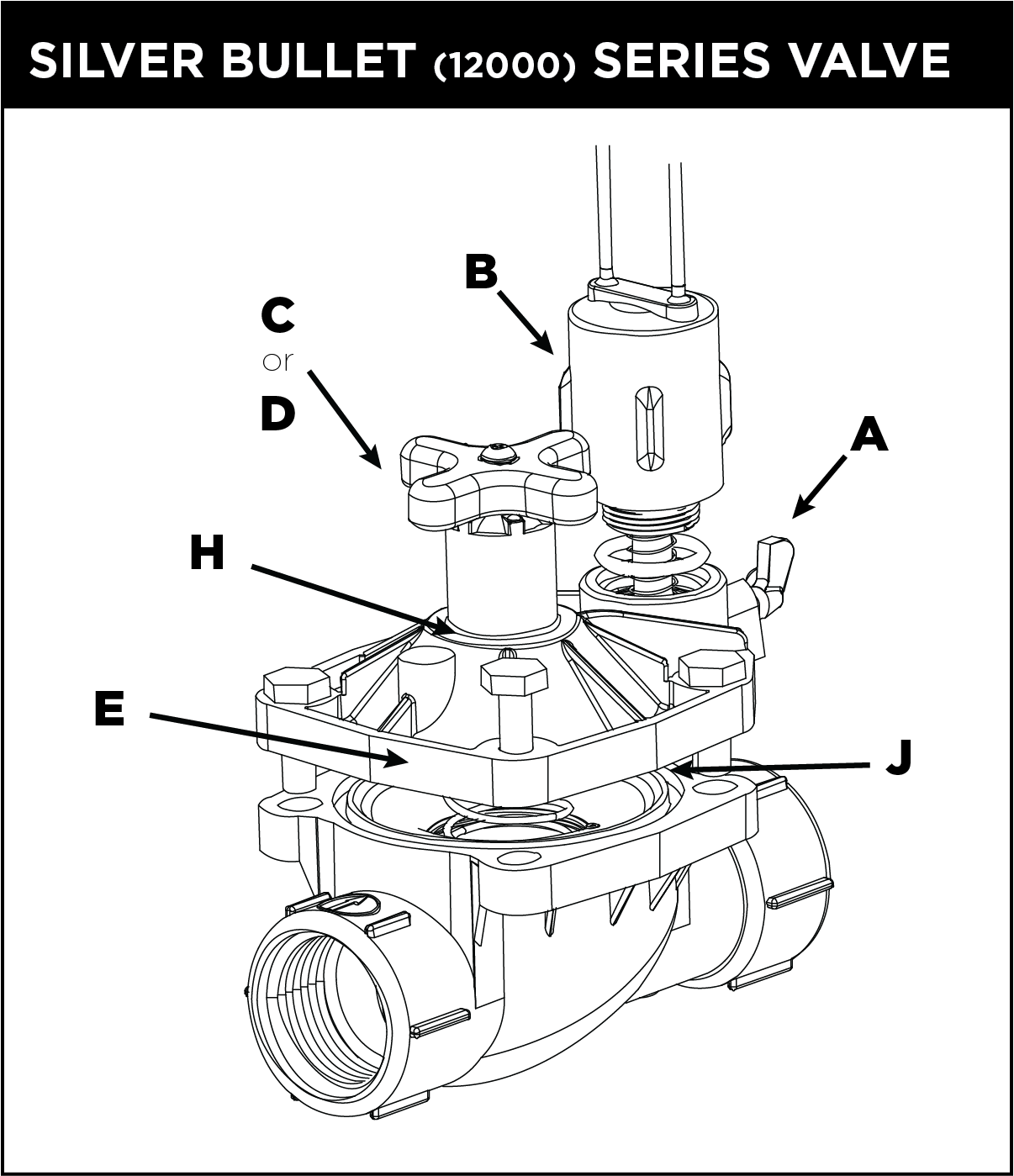

Ref	Description	Part Number
Common Parts
A	Bleed Lever Assembly Kit (5 per bag)	45-130R1-1SA
B	Solenoid	S20PSA
C	Standard Handle Assembly	144-010
D	Non-Potable Handle Assembly (5 per bag)	45-011NPSA
E	Diaphragm Spring	45-113
	Exhaust O-Ring	VMO-001
	S20PSA Actuator Assembly only	112-01SA
SB-10 (12024E-10-H) — 1" Silver Bullet
H	Cover Bolt	VMA-034
	Flow Adjust Kit (5 per bag)	110-03SA
SB-10/10F-HP (12000) Series "New Style" Parts
J	2 ⅜" dia. Diaphragm Assembly	110-603SA
SB-15 (12024E-15-H) — 1½" Silver Bullet
	1½" Valve Rebuild Kit	12000SAK-15
H	Cover Bolt	VMA-034
J	1½" dia. Diaphragm	49-110DMSA
	Diaphragm Assembly	49-10DSA
SB-20 (12024E-20-H) — 2" Silver Bullet
	2" Valve Rebuild Kit	12000SAK-20
H	Cover Bolt	VMA-056
J	4 ⅜" dia. Diaphragm	50-110DMSA
	Diaphragm Assembly	50-10DSA
SB-10/10F (12024E-10-H) — 1" Silver Bullet "Old Style"
J	1" dia. Diaphragm	110-003SA
	Serv-Kit-12000 dia. (2 1/16" diameter), S20P, Spring, cover bolts	110-003-SAK

SB-10-HP

1″ 24 VAC

Dimensions
5” L x 3.13″ W x 4.75″ H
(12.7 cm x 7.95 cm x 12.07 cm)

Flow Range
0.2 to 180 GPM
0 to 3.5 m3/hr

Electrical
24VAC/60HZ
Inrush: 9.48 VA, Holding: 5.11 VA
24VAC/50Hz
Inrush: 10.66 VA, Holding: 5.97 VA

1″ 24 VAC with Flow Control

Dimensions
5” L x 3.13″ W x 4.75″ H
(12.7 cm x 7.95 cm x 12.07 cm)

Flow Range
0.2 to 180 GPM
0 to 3.5 m3/hr

Electrical
24VAC/60HZ
Inrush: 9.48 VA, Holding: 5.11 VA
24VAC/50Hz
Inrush: 10.66 VA, Holding: 5.97 VA

1-1/2″ 24 VAC with Flow Control

Dimensions
5” L x 3.13″ W x 4.75″ H
(12.7 cm x 7.95 cm x 12.07 cm)

Flow Range
0.2 to 180 GPM
0 to 3.5 m3/hr

Electrical
24VAC/60HZ
Inrush: 9.48 VA, Holding: 5.11 VA
24VAC/50Hz
Inrush: 10.66 VA, Holding: 5.97 VA

2″ 24 VAC with Flow Control

Dimensions
5” L x 3.13″ W x 4.75″ H
(12.7 cm x 7.95 cm x 12.07 cm)

Flow Range
0.2 to 180 GPM
0 to 3.5 m3/hr

Electrical
24VAC/60HZ
Inrush: 9.48 VA, Holding: 5.11 VA
24VAC/50Hz
Inrush: 10.66 VA, Holding: 5.97 VA
