Black Max Valves

Updated

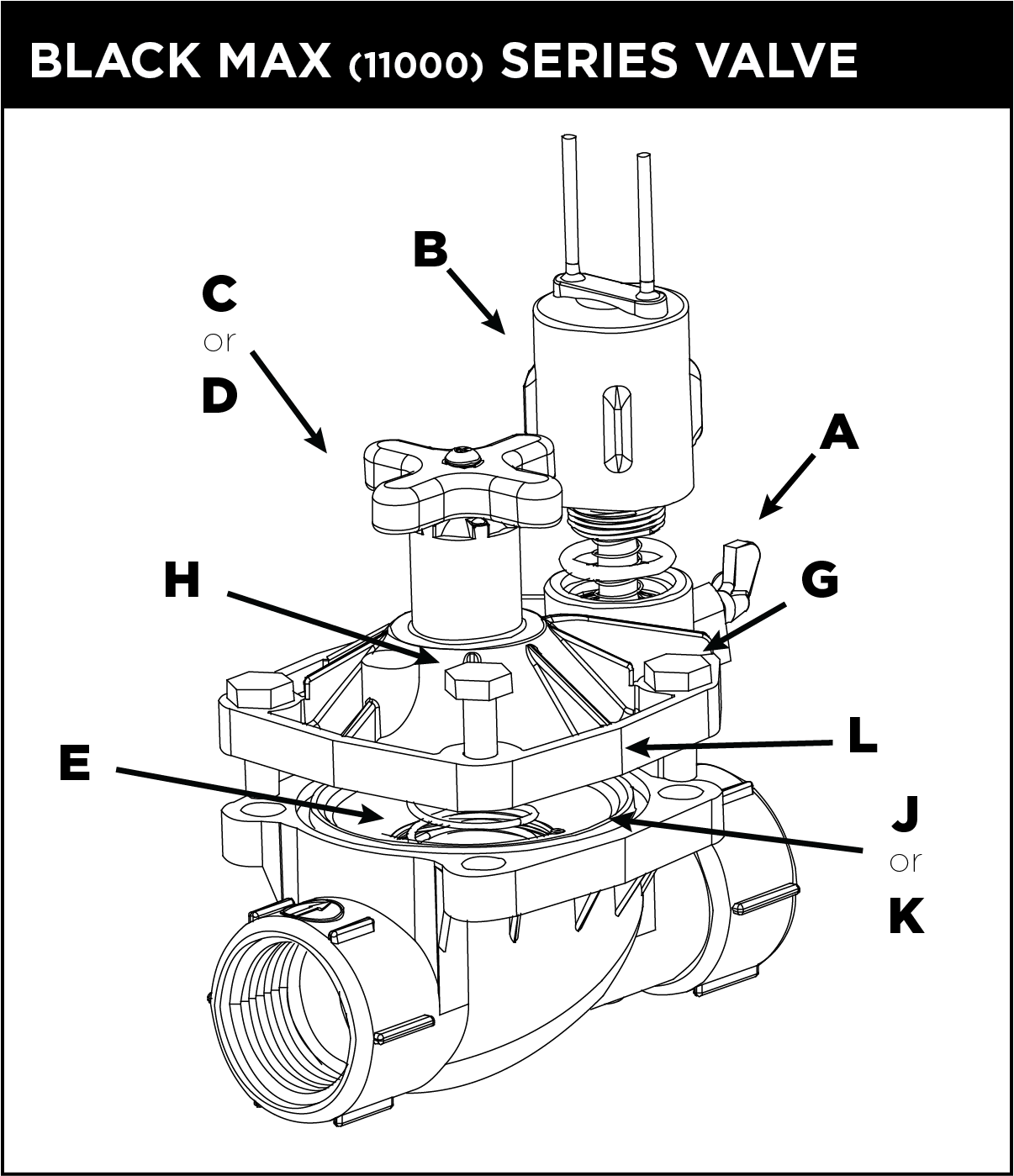

// REPAIR PARTS DIAGRAM //

RefDescriptionPart Number
Common Parts
ABleed Lever Assembly Kit (5 per bag)45-130R1-1SA
BSolenoidS24BSA
CStandard Handle Assembly144-010
DNon-Potable Handle Assembly (5 per bag)45-011NPSA
EDiaphragm Spring45-113
 S24B Actuator Spring Assembly30-91ASA
 Exhaust O-RingVMO-001
11024FCR-10D — 1" Black Max
G1" Valve Rebuild Kit45-20SAK
HCover BoltVMA-034
J2¼" dia. Diaphragm45-110DMSA
KDiaphragm Assembly45-20DSA
LCover Assembly45-02FSA
11024FCR-15D — 1-1/2" Black Max
G1-1/2" Valve Rebuild Kit49-20SAK
HCover BoltVMA-034
J3 5⁄16" dia. Diaphragm49-110DMSA
KDiaphragm Assembly49-10DSA
LCover Assembly49-02SA
11024FCR-20D — 2" Black Max
G2" Valve Rebuild Kit50-20SAK
HCover BoltVMA-056
J4 ⅜" dia. Diaphragm50-110DMSA
KDiaphragm Assembly50-10DSA
LCover Assembly50-02SA



// MODELS & PRODUCT SPECIFICATIONS //
Black Bullet Max Valve

Black Bullet Max



Flow Range
0.2 to 130 GPM (0 to 30.0 m3/hr)

Electrical
24VAC/60HZ: Inrush: 9.48 VA, Holding: 5.69
24VAC/50Hz: Inrush: 10.7 VA, VA Holding: 7.5 VA

Models & Dimensions
MAX-DW-10 – Dirty Water 1″ 24 VAC
Length: 5” (12.7 cm) Width: 3.13” (7.95 cm) Height: 4.75” (12.07 cm)
MAX-DW-15 – Dirty Water 1 1⁄2″ 24 VAC
Length: 5.75” (14.61 cm) Width: 4.50” (11.43 cm) Height: 4.88” (12.40 cm)
MAX-DW-20 – Dirty Water 2″ 24 VAC
Length: 7.25″ (18.42 cm) Width: 5″ (12.7 cm) Height: 6″ (14.24 cm)



// BLACK MAX SERIES VALVE PRESSURE LOSS CHART //

Imperial (PSI)Metric (bar)
Flow
GPM		MAX-DW-10
1"		MAX-DW-15
1½"		MAX-DW-20
2"		Flow
m³/hr		MAX-DW-10-ISO
2.54 cm		MAX-DW-15-ISO
3.81 cm		MAX-DW-20-ISO
5.08 cm
0–41.2 max  0–0.90.08 max
61.4  1.00.10
81.6  2.00.12
101.7  2.50.13
152.0  3.00.14
202.31.3 5.00.180.10
253.01.6 6.00.240.12
304.31.9 7.00.320.14
356.0*2.4 8.00.43*0.17
407.73.02.39.00.540.210.16
459.53.82.410.00.640.260.17
5011.54.62.611.00.770.310.17
55 5.6*2.712.0 0.37*0.18
60 6.72.914.0 0.510.20
70 9.53.316.0 0.680.23
80 13.03.418.0 0.900.23
90  4.220.0  0.29
100  5.2*22.0  0.34*
110  6.724.0  0.42
120  7.726.0  0.50
130  8.830.0  0.62

* Minimum recommended flow for valves with XPR option or PRK-24 accessory.
