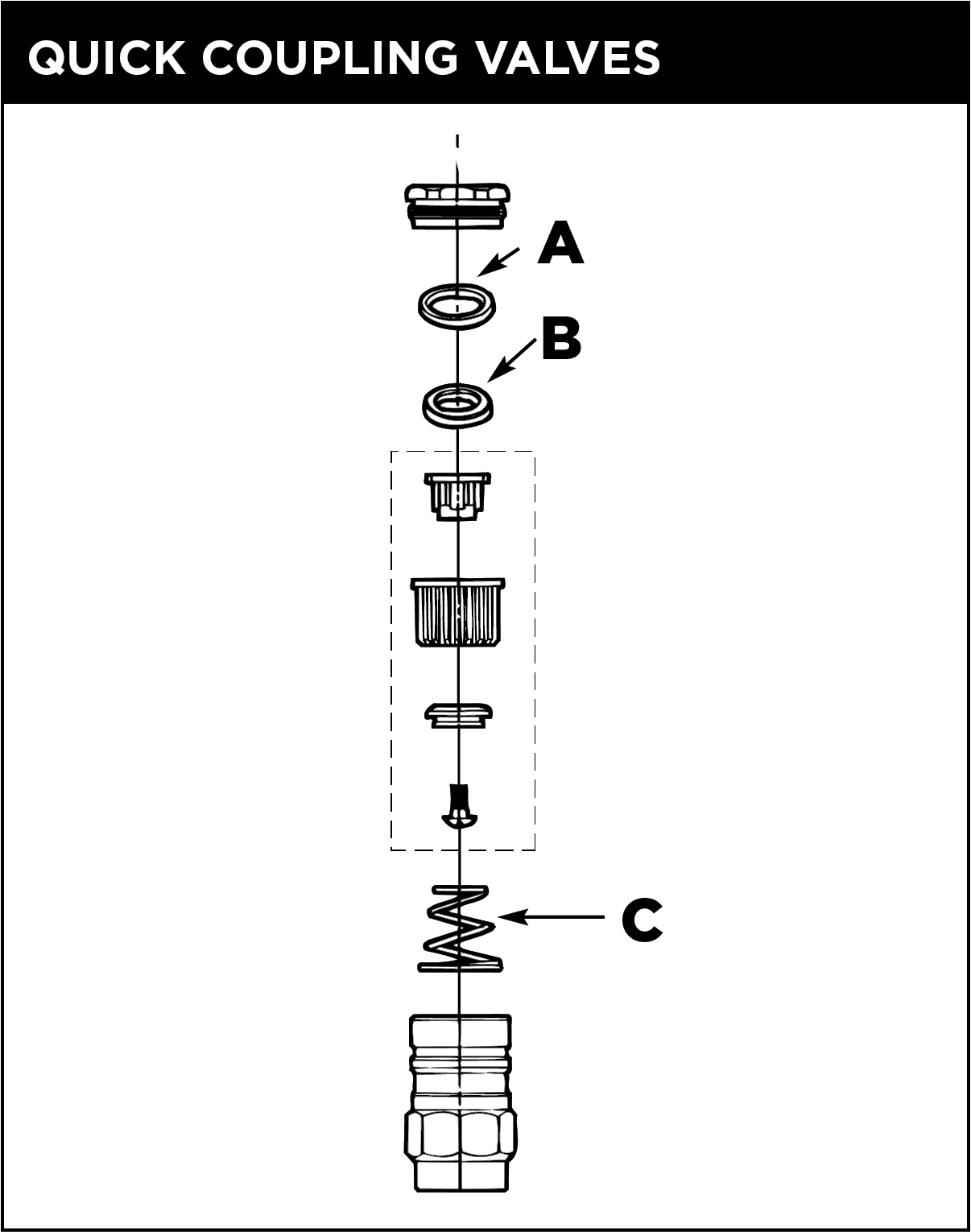

// REPAIR PARTS DIAGRAM //
| Ref |
Description |
Part Number |
| A |
Washer Kit |
77287 |
| B |
U Cup Seal Kit |
77288 |
| C |
Spring Kit |
77289 |
// MODELS & PRODUCT SPECIFICATIONS //
 Quick Coupling Valves
Dimensions
Bottom Pipe Thread: 1″ (25.4 mm)
Overall Height: 3 3⁄4″ (9.5 cm)
Flow Range
Max Capacity: 20 GPM (75.7 L/M)
Pressure
Max: 125 PSI (8.6 BAR)
Models
7642-QCVLYEL
Yellow Non-Locking Cover
1″ NPT (25.4 mm)
7643-QCVLYEL
Yellow Locking Cover
1″ NPT (25.4 mm)
7644-QCVNP
Lavender Non-Locking Cover
1″ NPT (25.4 mm)
7645-QCVLNP
Lavender Locking Cover
1″ NPT (25.4 mm)
|
 Coupler Keys Swivel Elbows
Models
8810-ELL
3⁄4” Female NPT x 3⁄4” Male Hose
8811-ELL
1” Female NPT x 3⁄4” Male Hose
8812-ELL
1” Female NPT x 1” Male Hose
|
 Coupling Keys
Models & Dimensions
7640-QCVKEY
3⁄4″ male x 1⁄2″ female
Male: 3⁄4″ (25.4 mm)
Female: 1⁄2″ (19.05 mm)
Height: 5 1⁄4″ (13.3 cm)
7641-QCVKEY
1″ male x 3⁄4″ female
Male: 1″ (19.05 mm)
Female: 3⁄4″ (12.7 mm)
Height: 5 1⁄4″ (13.3 cm)
8649-QCVKEY
|
// CAD DETAILS //
Quick Coupling Valves CAD Details
