Bronze Bullet Valves – Support

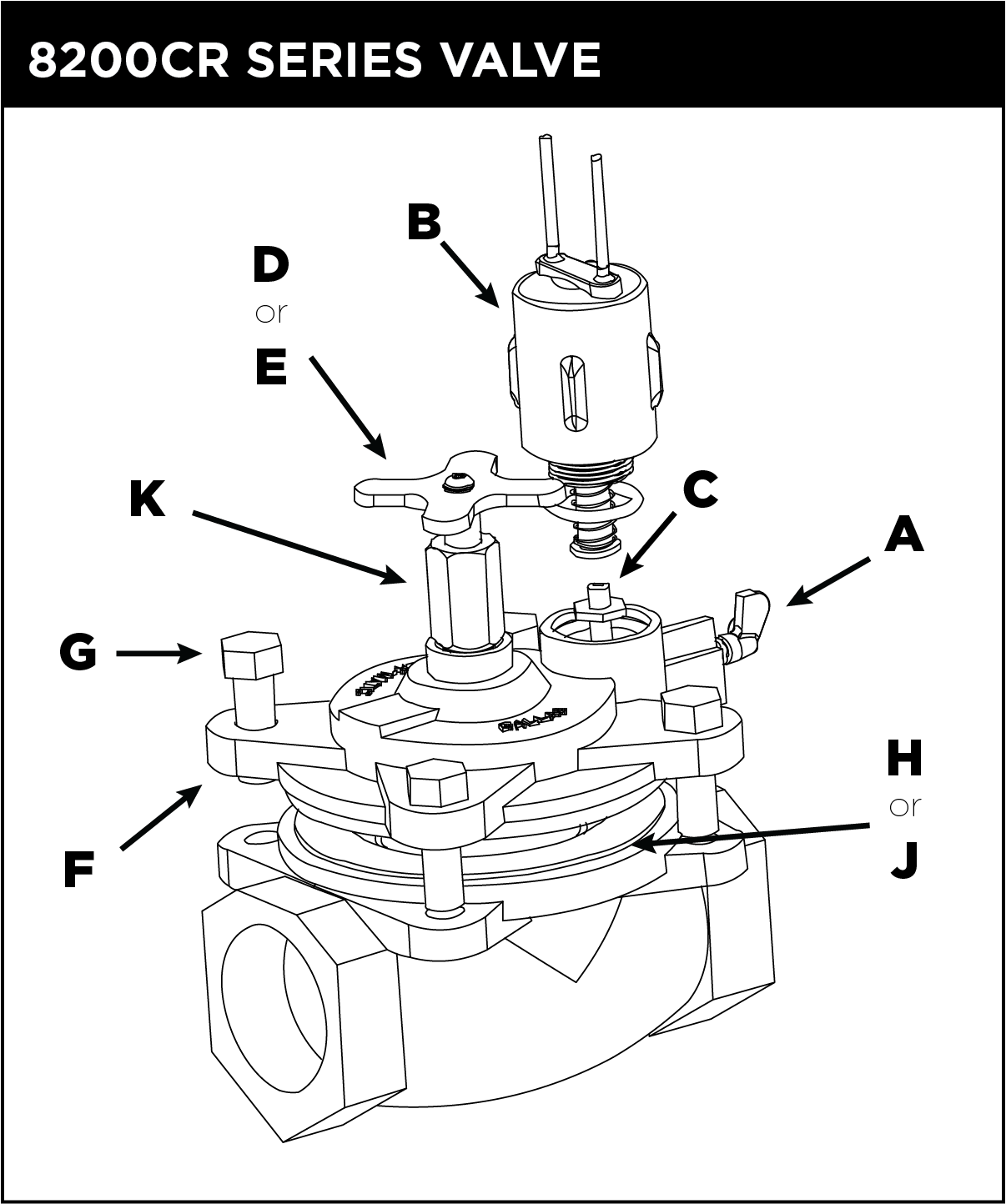

Ref	Description	Part Number
Common Parts
A	Bleed Lever Assembly Kit (5 per bag)	30-MBK
B	Solenoid	S24BSA
B	S24B Actuator Assembly only	30-91ASA
C	Exhaust Fitting Kit (5 per bag)	144-900SA
C	Exhaust Fitting	144-900
C	Exhaust Seal	144-600
D	Standard Handle Assembly	30-705
8200CR-10D — 1" Bronze Bullet
F	1" Valve Rebuild Kit	30-05SAK
F	Cover Assembly	30-03SA
G	Cover Bolt	VMA-047
H	3¼" dia. Diaphragm	30-104DMSA
J	Diaphragm Assembly	30-05DSA
	Diaphragm Spring	30-119
K	Flow Control Kit (5 per bag)	8200FSAK
	Flow Control (1 per bag)	8200FAK
8200CR-12D — 1¼" Bronze Bullet
F	1¼" Valve Rebuild Kit	30-08SAK
F	Cover Assembly	30-03SA
G	Cover Bolt	VMA-047
H	3¼" dia. Diaphragm	30-104DMSA
J	Diaphragm Assembly	30-08DSA
K	Flow Control Kit (5 per bag)	8200FSAK
	Diaphragm Spring	30-119
	Flow Control (1 per bag)	8200FAK
8200CR-15D — 1½" Bronze Bullet
F	1½" Valve Rebuild Kit	30-11SAK
F	Cover Assembly	30-09SA
G	Cover Bolt	VMA-047
H	3 11⁄16" dia. Diaphragm	30-203DMSA
J	Diaphragm Assembly	30-11DSA
K	Flow Control Kit (5 per bag)	8200FSAK
	Diaphragm Spring	30-119
	Flow Control (1 per bag)	8200FAK
8200CR-20D — 2" Bronze Bullet
F	2" Valve Rebuild Kit	30-14SAK
F	Cover Assembly	30-12ESA
G	Cover Bolt	VMA-071
H	4 5⁄8" dia. Diaphragm	30-303DMSA
J	Diaphragm Assembly	30-14DSA
	Diaphragm Spring	30-119
K	Flow Control Kit (5 per bag)	8200FSAK
	Flow Control (1 per bag)	8200FAK
8200CR-25D — 2½" Bronze Bullet
F	2½" Valve Rebuild Kit	30-17SAK
F	Cover Assembly	30-15ESA
G	Cover Bolt	VMA-048
H	5 13⁄16" dia. Diaphragm	30-404DMSA
J	Diaphragm Assembly	30-17DSA
	Diaphragm Spring	30-405
K	Flow Control Kit (5 per bag)	30-406AYSAK
8200CR-30D — 3" Bronze Bullet
F	3" Valve Rebuild Kit	30-20SAK
F	Cover Assembly	30-18ESA
G	Cover Bolt	VMA-049
H	6 1⁄16" dia. Diaphragm	30-604DMSA
J	Diaphragm Assembly	30-20DSA
	Diaphragm Spring	30-405
K	Flow Control Kit (5 per bag)	30-406AYSAK

Bronze Bullet

FLOW RANGE
0.2 to 400 GPM (0 to 90.0 m3/hr)

ELECTRICAL
24VAC/60HZ 24VAC/50Hz
Inrush: 9.86 VA Inrush: 10.7 VA
Holding: 5.69 VA Holding: 7.5 VA

Models & Dimensions
8200CR-10D
1” Red Brass Valve – 24VAC with Flow Control
Length: 4.75” (12.07 cm) Width: 3.63” (9.22 cm) Height: 5.25” (13.34 cm)

8200CR-12D
1 1⁄4” Red Brass Valve – 24VAC with Flow Control
Length: 4.75” (12.07 cm) Width: 3.63” (9.22 cm) Height: 5.25” (13.34 cm)

8200CR-15D
1 1⁄2” Red Brass Valve – 24VAC with Flow Control
Length: 5.06″ (12.85 cm) Width: 4.00″
(10.16 cm) Height: 5.75″ (14.61 cm)

8200CR-20D
2” Red Brass Valve – 24VAC with Flow Control
Length: 6.63” (16.84 cm) Width: 4.88″
(12.40 cm) Height: 7.25″ (18.42 cm)

8200CR-25D
2 1⁄2” Red Brass Valve – 24VAC with Flow Control
Length: 8.00” (20.32 cm) Width: 6.25″
(15.88 cm) Height: 8.00″ (20.32 cm)

8200CR-30D
3” Red Brass Valve – 24VAC with Flow Control
Length: 8.75″ (22.23 cm) Width; 7.00″ (17.78 cm) Height: 8.50″ (21.59 cm)

Imperial (PSI)							Metric (bar)
Flow GPM	10D 1"	12D 1¼"	15D 1½"	20D 2"	25D 2½"	30D 3"	Flow m³/h	10D 2.54cm	12D 3.18cm	15D 3.81cm	20D 5.08cm	25D 6.35cm	30D 7.62cm
0–10	1.5 max						0–2.3	0.10 max
12	1.8						3.0	0.14
16	2.4	1.9					4.0	0.19	0.15
20	3.1	2.3	1.4				5.0	0.25	0.19	0.11
25	4.0	3.0	1.7				6.0	0.30	0.22	0.13
30	4.9	3.5	2.1				7.0	0.35	0.26	0.15
35	5.9*	4.1	2.5				8.0	0.42*	0.30	0.17
40	7.2	4.7	2.9	1.1			9.0	0.50	0.33	0.20	0.08
45		5.5*	3.3	1.3			10.0		0.37*	0.23	0.08
50		6.3	3.7	1.5			11.0		0.43	0.25	0.10
55			4.2	1.8			12.0			0.28	0.12
60			4.8	2.0	1.0	0.5	14.0			0.35	0.15	0.08	0.04
70			6.2*	2.6	1.4	0.7	16.0			0.43*	0.19	0.10	0.05
80			7.9	3.4	1.8	0.9	18.0			0.54	0.24	0.12	0.06
90			10.1	4.3	2.1	1.1	20.0			0.68	0.29	0.15	0.08
100				5.3*	2.6	1.3	24.0				0.42*	0.20	0.10
120				8.0	3.6	1.8	28.0				0.61	0.27	0.13
140				12.0	4.8	2.4	32.0				0.84	0.34	0.17
160				18.2	6.1*	3.1	36.0				1.23	0.42*	0.21
180					7.5	3.8	40.0					0.51	0.27
200					9.1	4.6	50.0					0.77	0.40
250					14.0	7.1*	60.0					1.09	0.56*
300					19.6	10.1	70.0					1.45	0.76
350						13.8	80.0						1.00
400						19.3	90.0						1.34
